ZaloDetails
Catamaran is made in the classic scheme of a sailing catamaran. High-quality materials are used in its production. Catamarans are manufactured at our own facilities.
Owners of our catamarans can rest easy-registration of these catamarans in GIMS is not required
- small vessels weighing less than 200 kg are not subject to registration. The weight of the catamaran (cylinders and frame) is 60 kg., while the deck belongs to the tension equipment and is not taken into account when calculating the total mass.
- small vessels with a motor power of less than 8 kW (10 hp) are not subject to registration. A motor of up to 2.5 hp is installed on the catamaran.
- sailing vessels with a length of less than 9 meters and no equipped rest areas are not subject to registration. The length of the sailing catamaran is 4500 - 5250 mm., and the stretch deck can not be considered an equipped place for recreation.
Small but excellent
- Only 3 packages of 20 kg in the minimum configuration
- Fits in the passenger car interior: packing 190x30x30 cm-2 pcs, 50x50x70 cm-1 pc

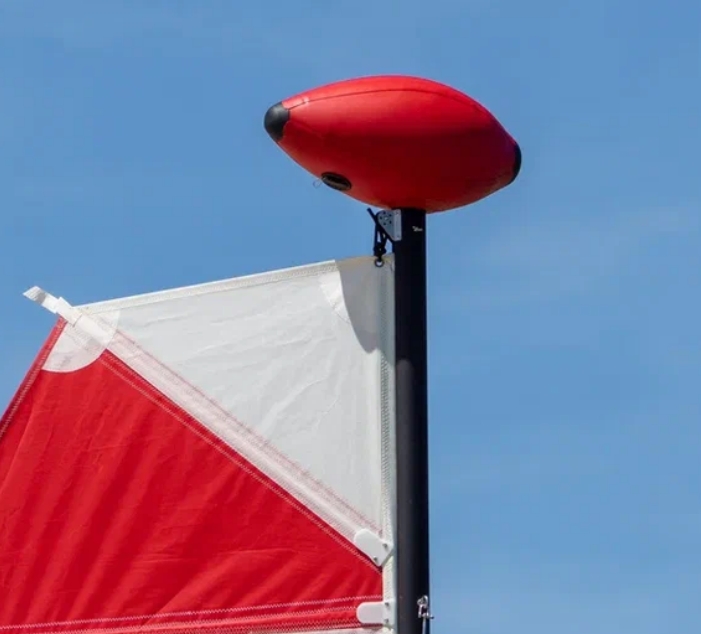

Topmast Float
The float is mounted on the top of the mast and does not allow the catamaran to make a full overkill. When the catamaran is turned over, the mast remains afloat, which greatly facilitates setting the catamaran on an even keel.
Boom
Catamaran boom installation kit includes everything necessary for installation and use: boom, rigging, blocks, stoppers, brackets, etc.

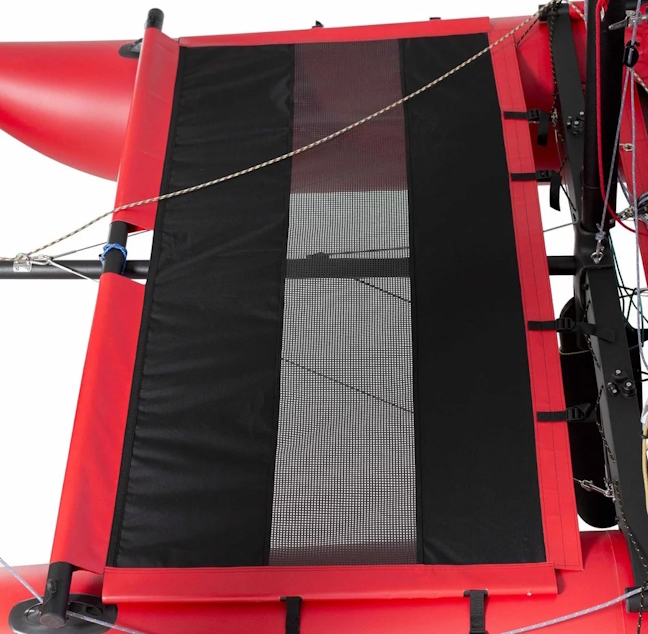

Cargo deck
The cargo deck is normally installed on the catamaran. Size: 1.6 x 0.8 m
option package

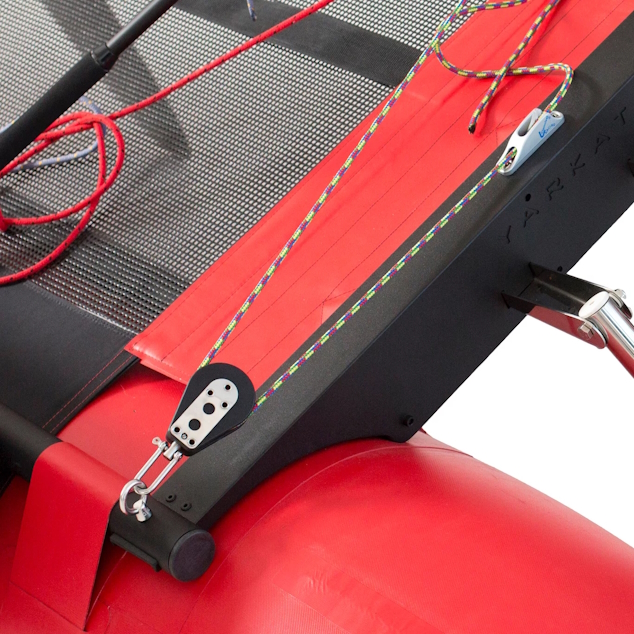

blocks and stoppers for the boom-sheet epaulette

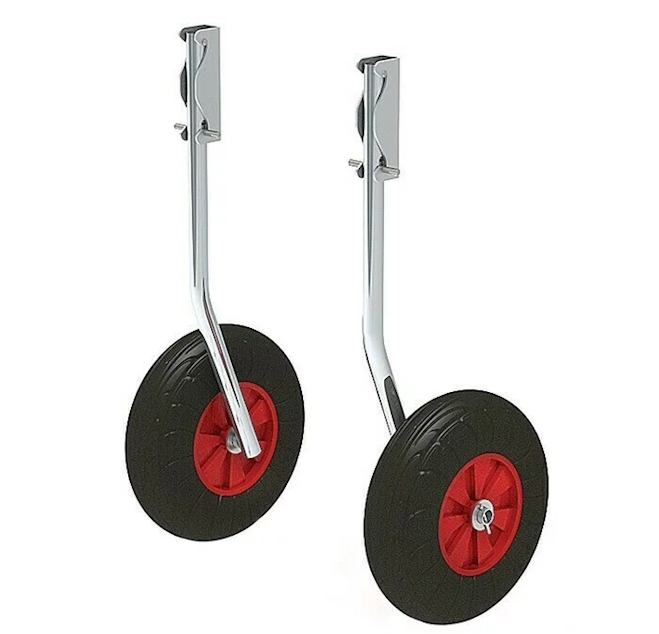

transom wheels
It has two fixed positions. Permissible load 150 kg. The pressure in the inflatable wheel is not more than 1.3 bar!

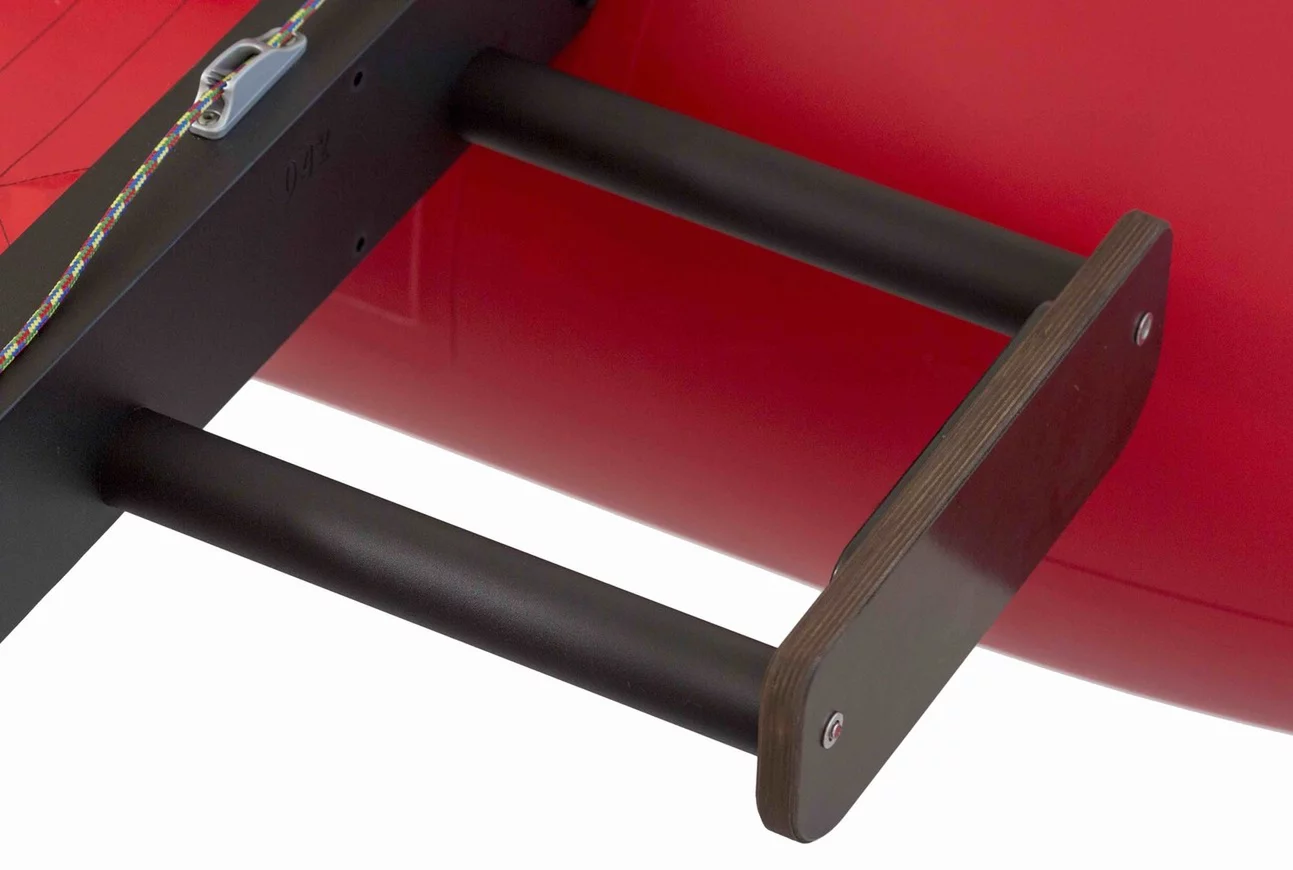

Transom
for motor up to 2.5 hp
THE BASIC set of the catamaran
| 2025 | 2025.5 | |
|---|---|---|
| Shtevnevye cylinders 5,25 m |
|
|
| Classic cylinders 4.5 m |
|
|
| Pack of 3 pieces, sail cover |
|
|
| Staysail twist |
|
|
| Tiller Extension Cable |
|
|
| Adjustable longitudinal Y stretch |
|
|
| Transom wheels |
|
|
Technical data
specifications
| Overall Length x Width | 5025 x 2000 cm |
| Weight | from 60 to 99 kg (depending on the configuration) |
| Packing dimensions |
2 pc: 190x30x30 cm 1 pc: 50x50x70 cm |
| Persons max. | 4 Persons + 2 child |
| Payload | 350 kg |
| Air Chambers | 4 |
| Assembly Time | 45 min |
| Mast height from waterline | 6 m (collapsible) |
| Material | boat PVC fabric, density of 1100 g / m2 |
| Grotto | 7 m2 |
| Staysail | 3 m2 |
| Cylinder diameter | 45 cm |
| Passenger deck | 1.6x1.8 m |
| Cargo deck | 1.6x0.8 m |
| Colour | red and black |
| Payload |
|
| Performance |
|
| Single-handed sailing |
|
| Two people sailing or more |
|
Speed Under sail with a wind of 5 m/s
|
Backstay (the wind in relation to the catamaran blows from behind-from the side) |
12 km / h |
|
Fordewind (the wind in relation to the catamaran blows in the stern) |
10 km / h |
|
Gulfwind (wind blows in the side of the ship) |
11 km / h |
|
Backwind (wind blows from front to side) of the vessel |
7 km / h |
On a 2.5 hp engine.
| At medium engine power | 10 km / h |
| At full engine power | 15 km / h |
Inflatable balloons (floats)
Made of boat PVC fabric, which has excellent gas-containing properties. The fabric density of 1100 g / m2 allows the future owner not to worry about the tightness of the cylinders. Additional reliability of the cylinders is provided by a special method of gluing: during production, the fabric is glued butt-to-butt, rather than overlapping, which allows you to ensure high strength and reliability of the structure at the place of gluing. The cylinders are tested for tightness at high pressure for 3 days.
The rudder
The rudder and dartboardmade by casting from a two-component composite material, the stoppers and blocks are manufactured by Viadana (Italy). At the same time, the ellipsoid shape allows you to give the keel maximum rigidity.
The catamaran deck
Made of composite mesh Serge Ferrari Precontraint (France). This mesh is nothing more than PVC-coated carbon fiber, which is almost impossible to tear.
The frame
Catamarans is made of aluminum alloy. Fastening of structures is bolted, which provides additional rigidity.
Sailing armament
Mast with liquid groove – made of a teardrop-shaped profile. Sails (mainsail and staysail) are made of dacron polyester fabric with a density of 170 TNF MT, which provides sails with unsurpassed rigidity and at the same time lightness. This fabric does not rot or tear, which guarantees long-term operation even in adverse conditions.
Sell Prices
Don't wait. The time will never be just right
Basic
- Ready to go on the water with all the amenities: a staysail twist and a tiller extension.
- Production time is 2-3 weeks
- Delivery is carried out within 1-2 weeks, depending on wokrload.
- Delivery is paid separately. 690$
Sport
- SPORT option package for the catamaran: Boom, Float for top mast.
- Production time is 2-3 weeks
- Delivery is carried out within 1-2 weeks, depending on wokrload.
- Delivery is paid separately. 690$
Tourist
- SPORT + TOURIST option package for the catamaran: Cargo deck, Transom.
- Production time is 2-3 weeks
- Delivery is carried out within 1-2 weeks, depending on wokrload.
- Delivery is paid separately. 690$
Frequently Ask Questions
Is it possible to get a discount?
Yes, it’s negotiated on a case-by-case basis.
How long should i wait for the catamaran after payment?
Production time + delivery usually takes 4-5 weeks. May change both up and down, depends on the season and workload in production
